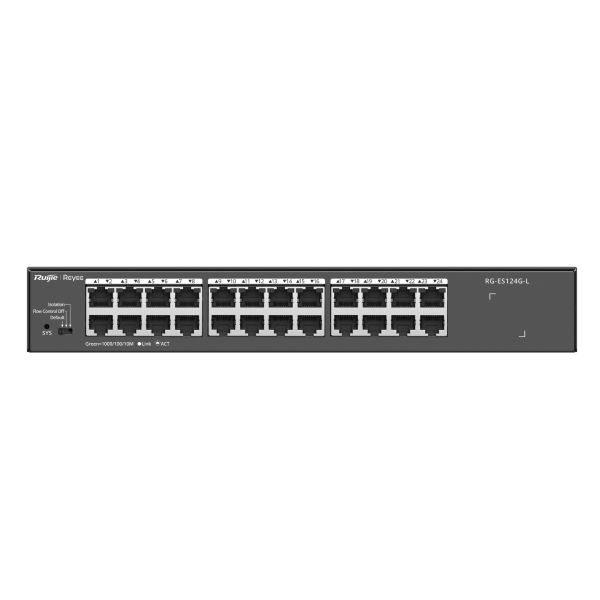

Ruijie RG-ES124G-L, 24-Port 10/100/1000 Mbps Unmanaged Non-PoE Switch

Plug-and-Play: No configuration required; auto-negotiation for speed and duplex. Port Isolation: DIP switch enables isolation mode (ports 1-22 isolated from each other but can communicate with ports 23-24) for enhanced security. Extend Mode: Supports up to 200m transmission on ports 1-8 at 10 Mbps (using Cat5e cables). Energy Saving: Low power consumption with flow control and green Ethernet standards. Surge Protection: 4kV common mode for reliable performance. Category Specification Ports 24 x 10/100/1000 Mbps RJ45 ports Switching Capacity 48 Gbps Forwarding Rate 35.7 Mpps MAC Address Table 8,000 entries Power Input 100-240V AC, 50/60 Hz; Maximum consumption: ≤6W Dimensions (W x D x H) 280 x 125 x 43.6 mm Weight 1.12 kg (1.86 kg with packaging) Operating Temperature 0°C to 45°C Storage Temperature -40°C to 70°C Humidity Operating: 10%-90% RH (non-condensing); Storage: 5%-95% RH (non-condensing) Fan Fanless Mounting Desktop or rack-mount (brackets included) Certifications CE; EMC: EN 55032, EN 61000-3-2/3-3, EN 55035; Safety: EN 62368-1 MTBF >200,000 hours Surge/ESD Protection Surge: 4kV common mode; ESD: 8kV air/6kV contact
