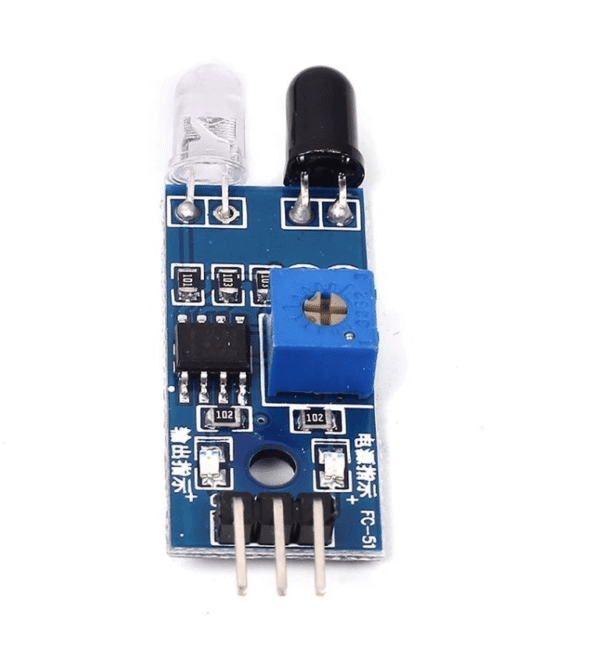

IR Obstacle Avoidance Sensor Module

The IR Obstacle Avoidance Sensor uses an infrared transmitter and receiver to detect objects in front of the sensor. When an obstacle comes within the detection range, the IR light reflects back to the receiver, triggering the output signal. The module includes an onboard LM393 comparator and an adjustable potentiometer to control the detection distance. It provides both digital output and status LEDs for easy monitoring. Because of its compact size and easy interface, this sensor is commonly used in robotics, obstacle detection systems, smart vehicles, and automation projects. Key Features Infrared obstacle detection Adjustable detection distance Onboard indicator LED Digital output signal Compact and lightweight design Easy interface with Arduino and other microcontrollers Technical Specifications Parameter Value Operating Voltage 3.3V – 5V Output Type Digital Detection Distance 2 cm – 30 cm (adjustable) Sensor Type Infrared (IR) Comparator IC LM393 Pin Configuration Pin Description VCC Power Supply (3.3V–5V) GND Ground OUT Digital Output Signal What’s in the Box 1 × IR Obstacle Avoidance Sensor Module
