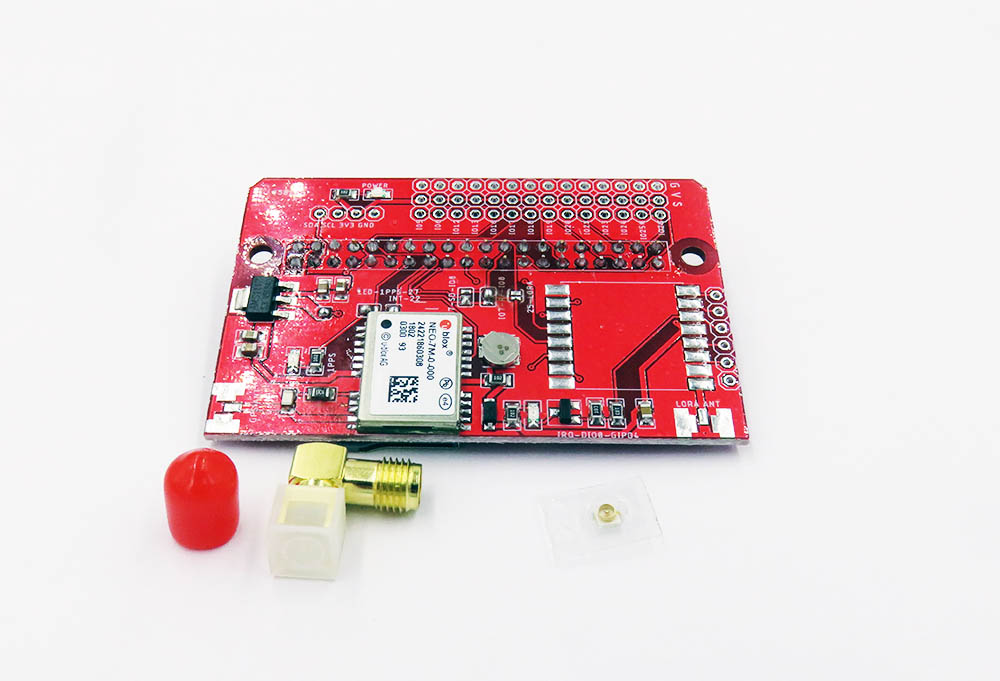

GPS SD RF Lora Shield for Raspberry Pi R2 (w/o Lora Module)

Description Support GPS, lora RF and microSD card reader all in one raspberry pi shield. GPS: Use GPS module Ublox Neo-7M, or NEO-6M or ATGM332 compatible GPS module. All have the same performace. Fast and high speed locating. By test with our 3M meter GPS antenna, fixed in 30 seconds by small ceramic antenna fixed in 3- 10 mintues, in brand new module. On board backup battery, for next time quick fix location. On board 1PPS fix GPS LED to indication location is fixed. Interruption pin and 1PPS pin can connect to RPI by jumper. Reserved Lora RF Transceiver (Module need to be purchased alone): Please notice lora module is not soldered. Please notice the footprint of this lora module ONLY support the one selling in our store, other version is not supported and it is different. Support “low cost lora gateway” simple run ./lora_gateway, frequency is top important. Better attached antenna, a high performance antenna is critical for signal. Support our type loraduino board, SX1278/76. Also use low cost lora gateway CE chip select pin can be chose by CE0, CE1 or gpio25 by jumper. For dragino code, please close jumper GPIO25. Lora DIO0 connects to GPIO4, attached with on board LED. MicroSD: Support micro SD card, CE pin also selectable by CE0 or CE1 Other Features: All the breakout pins for raspberry pi Break out IIC pins On board power led Antenna: Versertile GPS and Lora antenna connection, see more description in wiki page. Support IPEX or SMA antenna, can also straight soldering pin/wire antenna. Default antenna is IPEX/UFL, easily conver to SMA too. Packaging: Not include Lora module, please buy from here!  (module included lora antenna) Not include GPS antenna, buy large one from here, or small one from here. Include all the rest assembled board, except lora module! Include one 90-dgree SMA connector jack, one IPEX connetor jack (default soldered). More Documentation please see on this page.
