Ramps 2004 LCD Smart Controller (RepRap)

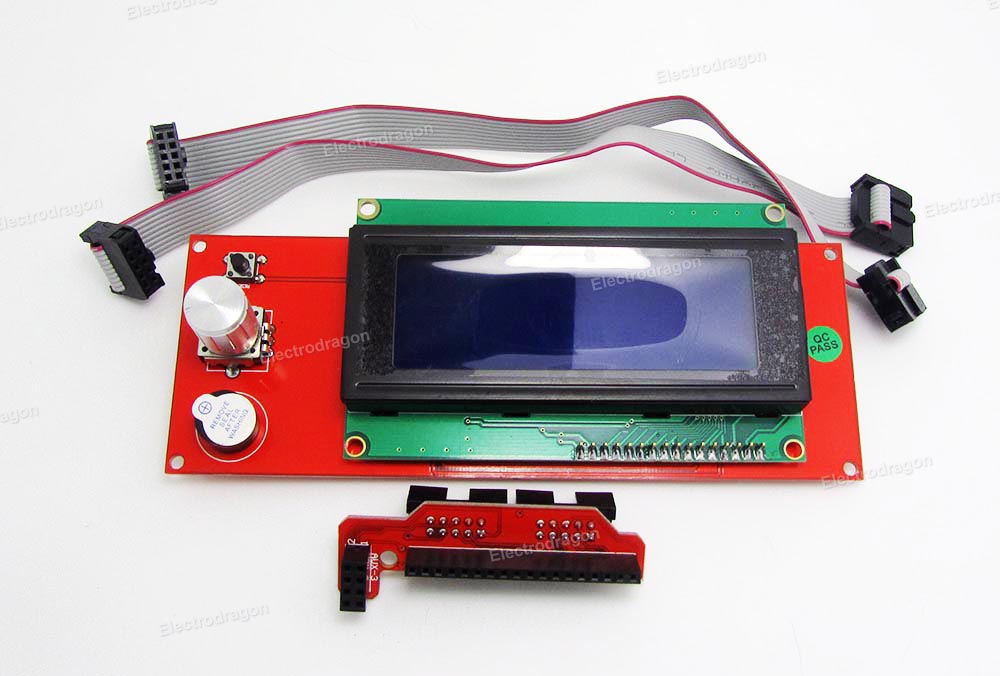

Description This Smart Controller contains a SD-Card reader, an rotary encoder and a 20 Character x 4 Line LCD display. You can easy connect it to your Ramps board using the “smart adapter” included. After connecting this panel to your Ramps you don’t need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card. Package List: 1x Smart Adapter (Fully Assembled) 1x 5″ Smart Controller with built in SD Card slot (Fully Assembled) 1x Set of 11″ Cables (Assembled) 1x Set of Headers to connect to your RAMPS 1.4 Board (May require Soldering) Updates: note the back box connector is straight, not 90-degree anymore Documents: LCD Connect Schematics RepRapDiscount Controller Final Schematics Smart Adapter Gerber Files Smart Controller Gerber Files firmware  Marlins’ sources
