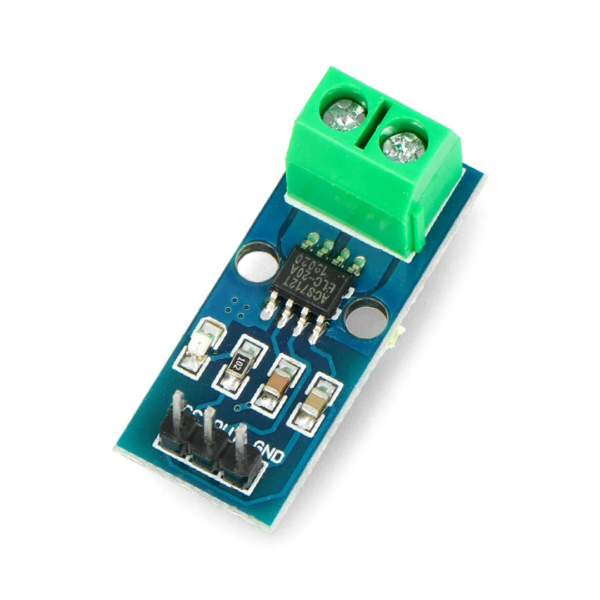

ACS712 10A Current Sensor Module

The ACS712 10A Current Sensor Module is based on Hall-effect sensing technology, allowing it to measure electrical current flowing through a conductor without direct electrical contact with the measurement circuit. The sensor outputs an analog voltage proportional to the current, which can be read by a microcontroller’s analog input pin. The module also provides electrical isolation between the high-current path and the control circuit, improving safety and reliability. Because of its compact size and accurate sensing, the ACS712 module is widely used in energy monitoring systems, power supply monitoring, motor control systems, and battery management applications. Key Features Measures both AC and DC current Current measurement range up to ±10A Based on Hall-effect current sensing Analog voltage output Electrically isolated measurement Easy interface with Arduino and other microcontrollers Technical Specifications Parameter Value Operating Voltage 5V Current Range ±10A Output Type Analog Sensitivity 185 mV/A Sensor Type Hall Effect Current Sensor Pin Configuration Pin Description VCC Power Supply (5V) GND Ground OUT Analog Output What’s in the Box 1 × ACS712 10A Current Sensor Module
