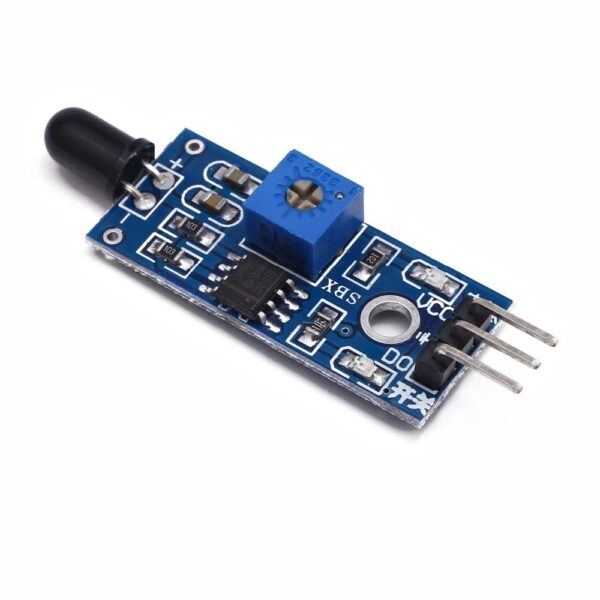

Flame Sensor Module (IR Flame Detection Sensor)

The Flame Sensor Module is designed to detect fire or flame sources by sensing infrared light emitted from flames. It is commonly used in fire detection systems, safety alarms, and robotics projects. This module can detect flames within a certain distance and provides both analog and digital outputs for easy integration with microcontrollers such as Arduino, ESP8266, and ESP32 boards. With adjustable sensitivity and a compact design, it is suitable for DIY electronics, automation systems, and educational projects. Key Features Detects flame or fire sources High sensitivity infrared receiver Adjustable detection sensitivity Digital and analog output Onboard indicator LED Easy interface with microcontrollers Technical Specifications Parameter Value Operating Voltage 3.3V – 5V Detection Angle ~60° Detection Distance Up to ~100 cm (depends on flame intensity) Output Type Analog and Digital Comparator IC LM393 Interface Pins VCC, GND, DO, AO Pin Configuration Pin Description VCC Power Supply (3.3V–5V) GND Ground DO Digital Output AO Analog Output What’s in the Box 1 × Flame Sensor Module
